This is a simple Keycloak authenticator that enables users to log in using tokens.

⚠️IMPORTANT NOTICE ⚠️

This authenticator creates a user session in the browser using an ID or access token. This bypasses one of Keycloak’s security mechanisms, so this extension should be configured with care.

In my customer projects, I often encountered the challenge that single sign-on did not work due to a missing session/cookie in the browser for mobile apps. This situation can arise if

• the application uses the "Resource Owner Password Credentials Grant" flow or
• the mobile browser does not permanently store the cookie for the mobile app

The authenticator expects an ID- or Access token in the client notes, which can be transmitted via a pushed authorization request (PAR) in an additional request. If such a token is available, it is validated and, if validation is successful, the user from the token is set in the authentication context.

Here is an example of one of the use cases (public target client):

sequenceDiagram
    actor user as End User
    participant mobile as Mobile Application <br> (Source Client)
    participant backend as Mobile Backend
    participant browser as Browser  <br> (User Agent)
    participant webapp as Web Application <br> (Target Client)
    participant keycloak as Keycloak <br> (OpenID Provider)

    %% User logs in to the mobile app
    note over user,keycloak: Resource Owner Password Flow
    user ->> mobile: login
    mobile -->> user: login screen
    user ->> mobile: credentials
    mobile ->> keycloak: /token + grant_type=password
    activate keycloak
    keycloak ->> keycloak: validate credentials
    keycloak -->> mobile: 🟢 ID-/ 🔵 Access-Token
    deactivate keycloak
    mobile -->> user: logged in
    user ->> mobile: request Web App
    mobile ->> backend: 🟢 🔵 request Web App

    %% The user initiates the login to the web application.
    note over backend,keycloak: Start Session via ID-Token
    backend ->> keycloak: /ext/par/request + form-param 🟢 ID-Token & client_id=proxy-client
    activate keycloak
    keycloak -->> backend: request_uri
    backend ->> browser: /auth + request_uri
    browser ->> keycloak: /auth + request_uri
    keycloak ->> keycloak: verify 🟢 ID Token
    keycloak ->> keycloak: create session #127850;
    keycloak -->> browser: redirect
    deactivate keycloak
    browser ->> webapp: HTTP-GET

    %% SSO login via browser cookie
    note over browser,keycloak: Authorization Code Flow
    webapp ->> keycloak: /auth
    activate keycloak
    keycloak ->> keycloak: auth via #127850;
    keycloak -->> browser: /callback + code
    browser ->> webapp: /callback + code
    webapp ->> keycloak: /token + code
    keycloak -->> webapp: 🟡 ID-/ 🟠 Access-Token
    deactivate keycloak
    webapp -->> browser: content
    browser -->> user: content

Mermaid diagram — view rendered on GitHub

Download a release (*.jar file) that works with your Keycloak version from the list of releases. Follow the below instructions depending on your distribution and runtime environment.

Copy the jar to the providers folder and execute the following command:

${kc.home.dir}/bin/kc.sh build

For Docker-based setups mount or copy the jar to /opt/keycloak/providers.

If you are using RedHat SSO instead of Keycloak open source, mount or copy the jar to /opt/eap/providers/.

You may want to check docker-compose.yml as an example.

This project also includes a executable shell script login_example.sh that works together with docker-compose.yml. To get an idea of what the script does, you can take a look at the following: Overview.md

Packages are being released to GitHub Packages. You find the coordinates here!

It may happen that I remove older packages without prior notice, because the storage is limited on the free tier.

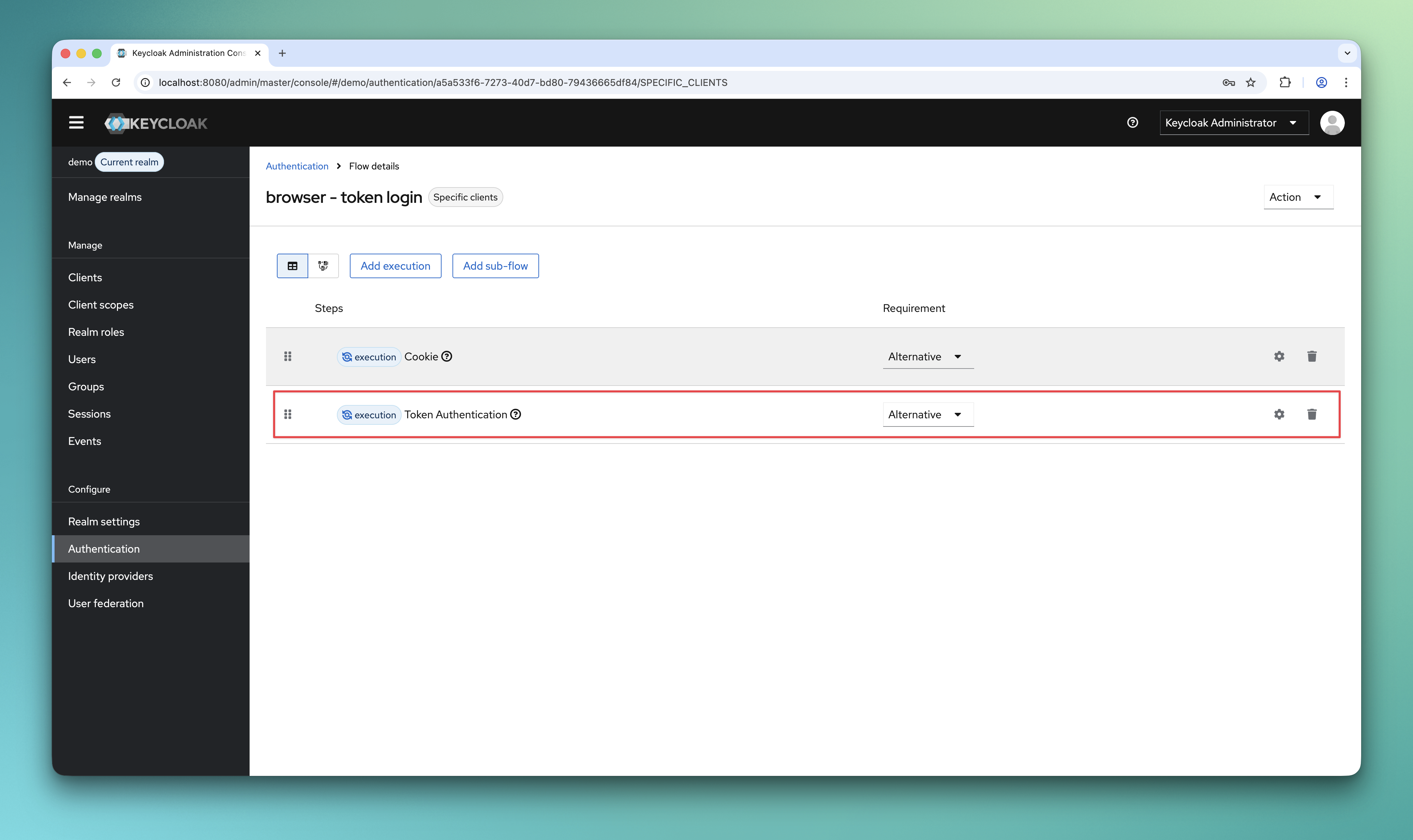

This authenticator can be used as an alternative to the authenticator cookie, Kerberos, etc. We need to create a custom browser flow, which will be later assigned to our proxy-client.

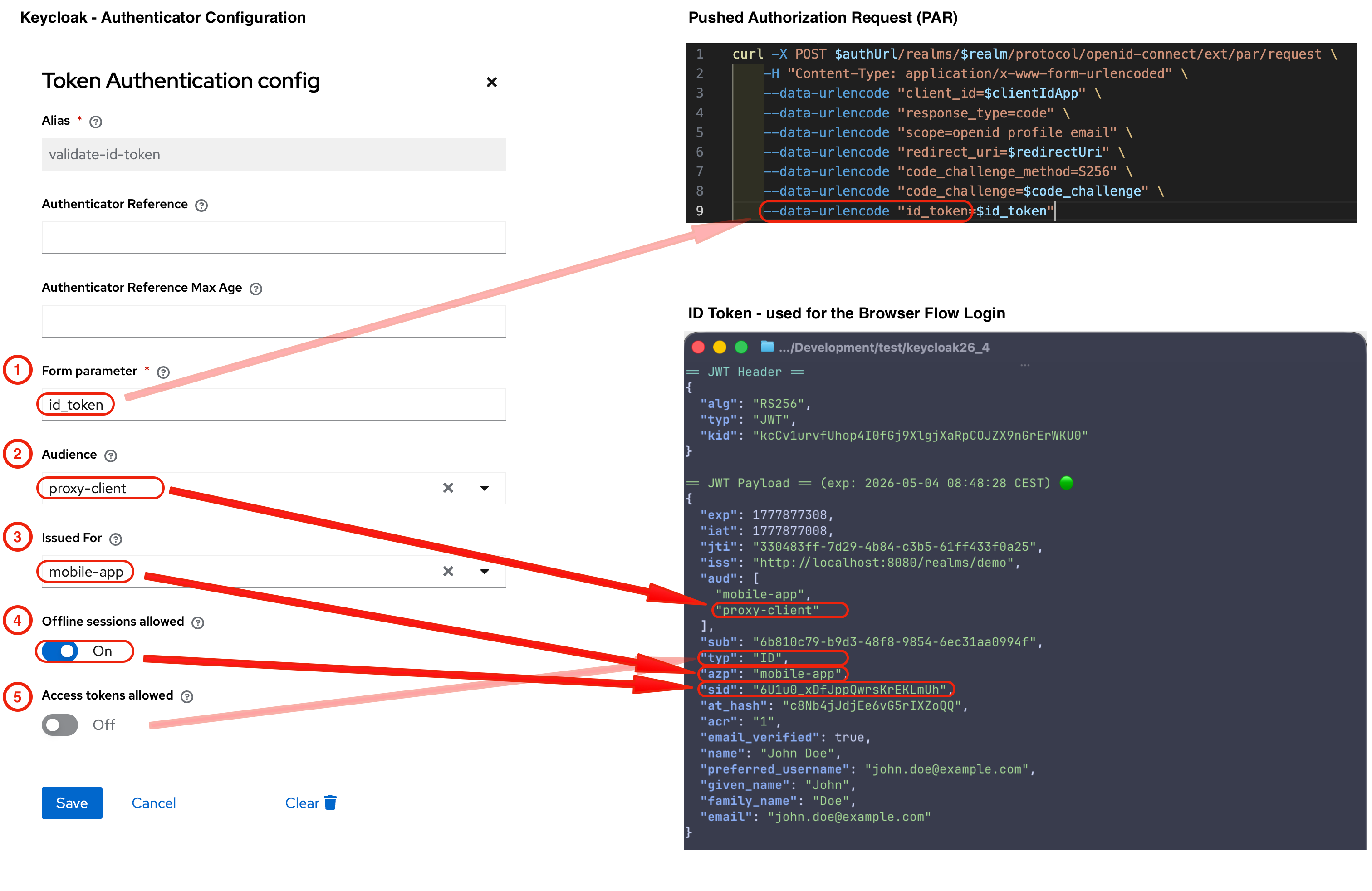

The configuration of this authenticator is as follows

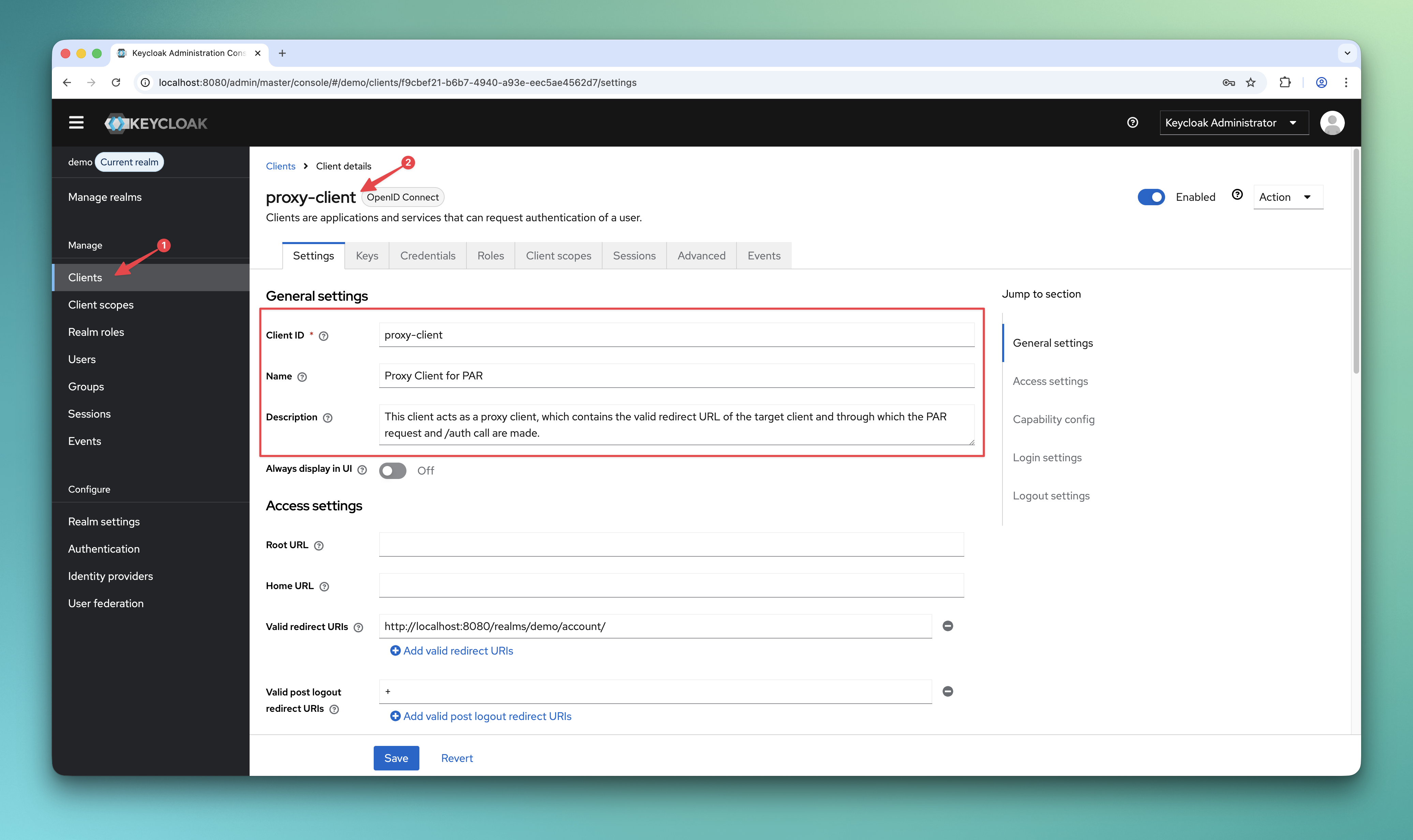

To avoid having to maintain the valid redirect URIs on the source client, we use a confidential OIDC proxy-client for the Pushed Authorization Request (PAR) call.

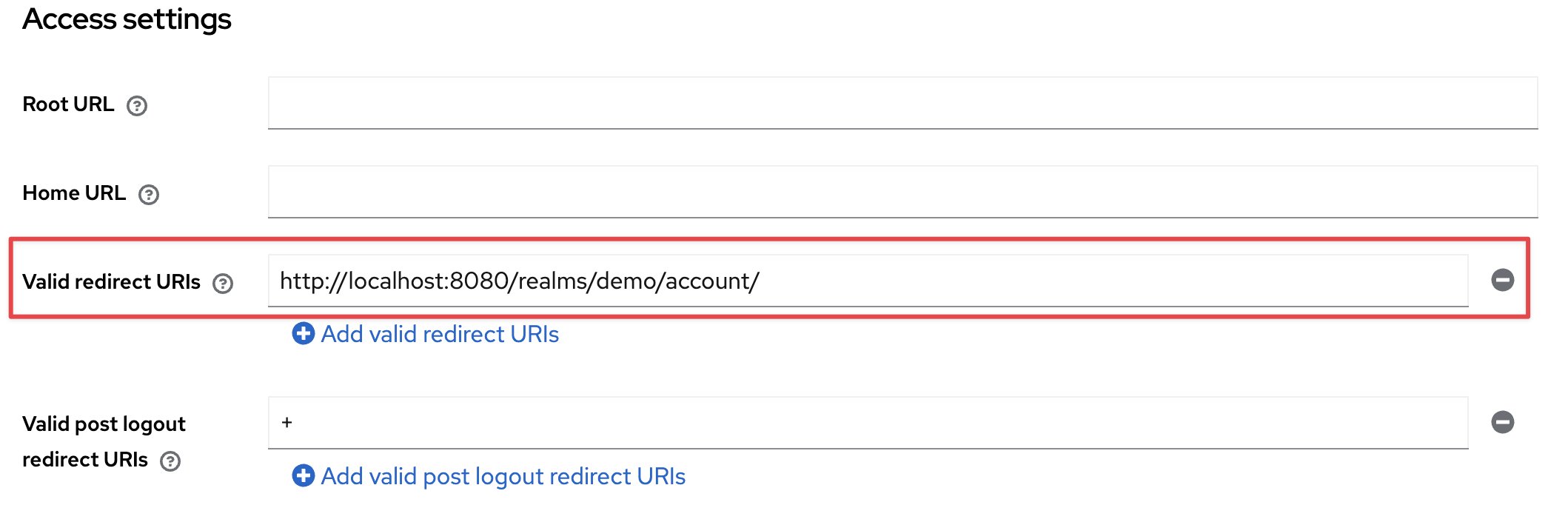

Configure all permitted redirect URIs for the target clients. In our case, this is the Keycloak console.

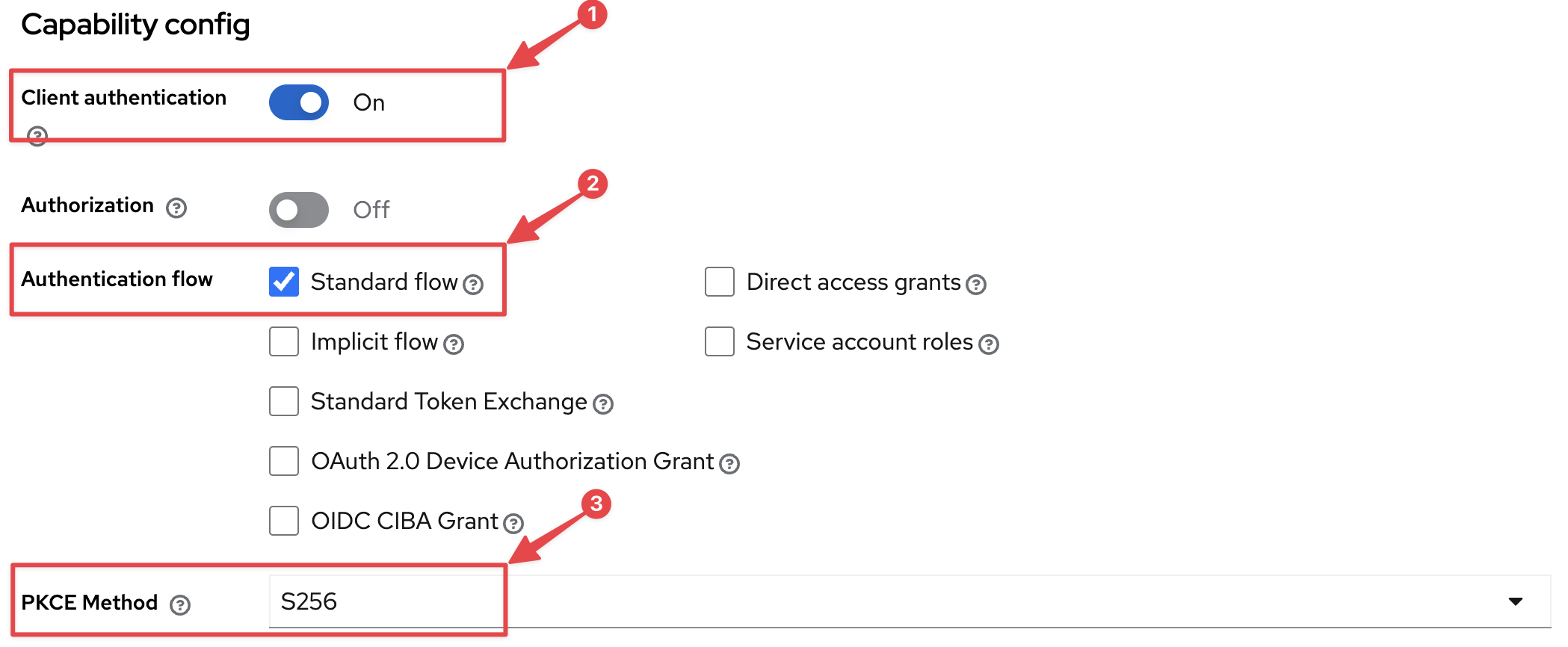

Set the client to confidential and enable PKCE (PKCE is optional but recommended). Only the ‘Standard Flow’ needs to be enabled to allow the ‘Authorisation Code Flow’

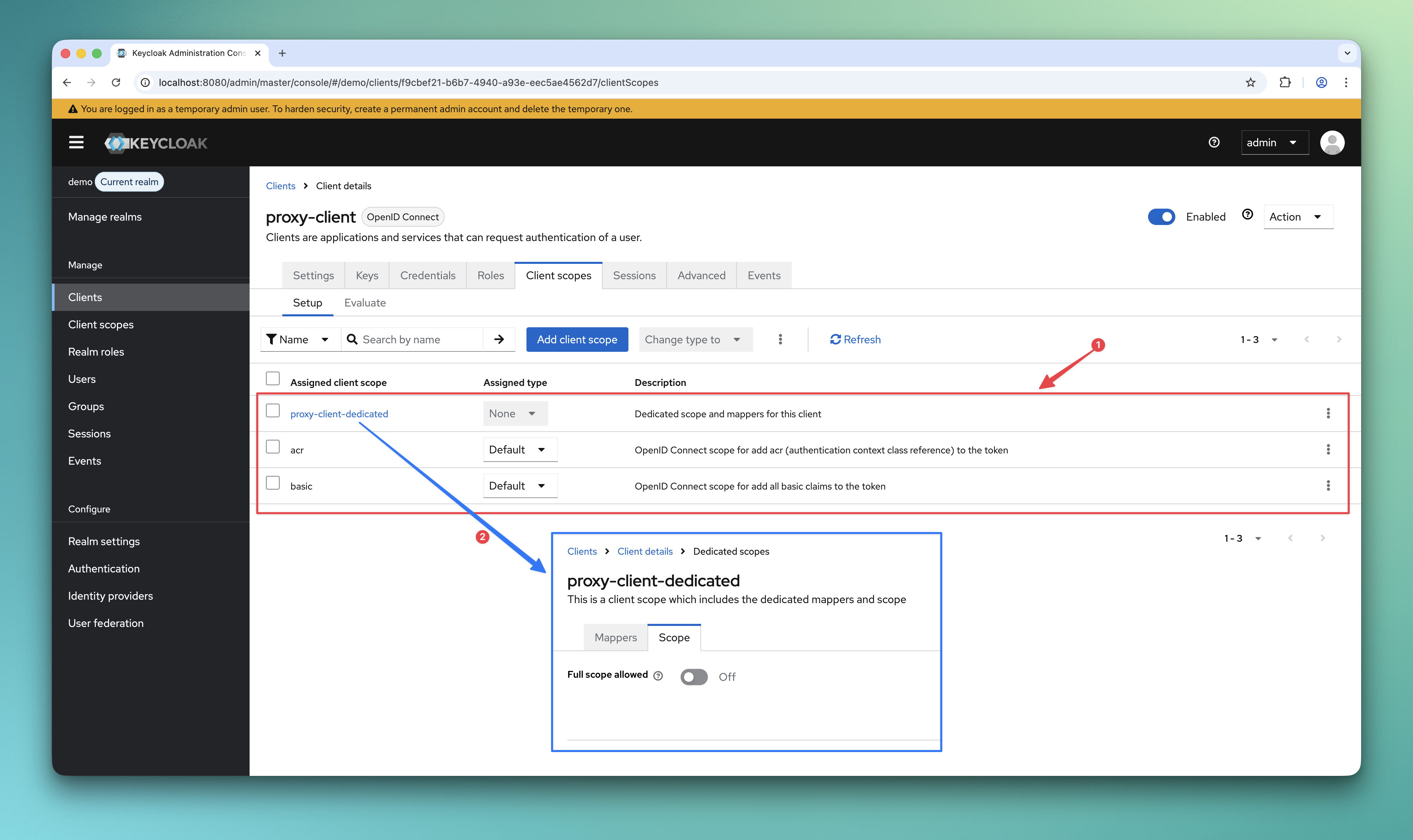

This proxy client only requires the ‘openid’ scope, so we will restrict the scopes as follows. "Full scope allowed" option on the dedicated scope should also be disabled.

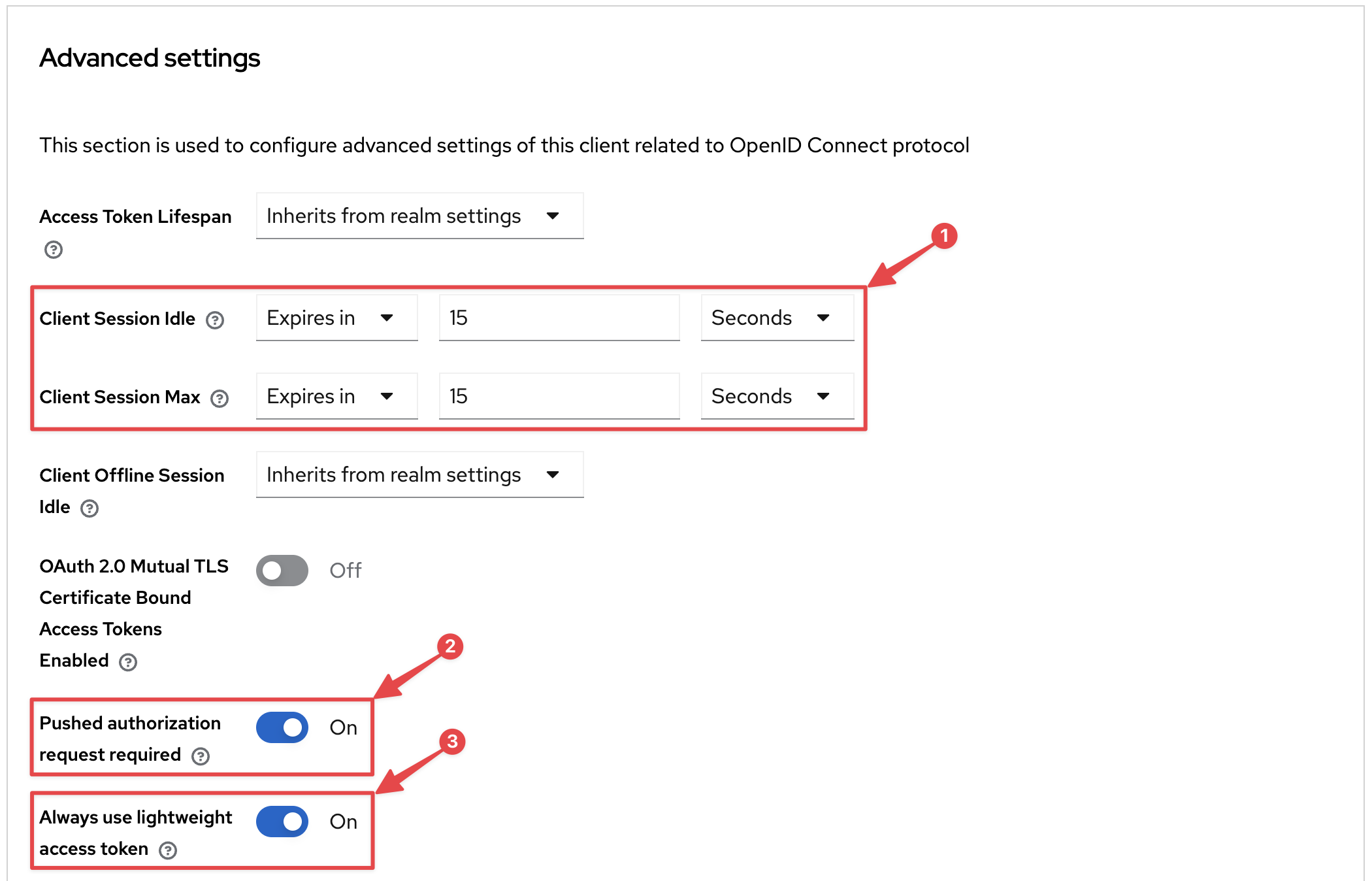

PAR should be mandatory for the proxy client, and the session duration can be set to a very short time (e.g. 15 seconds).

Optional: We can also enable the ‘Always use lightweight access tokens’ option, but in normal use cases we will never receive a token for this client.

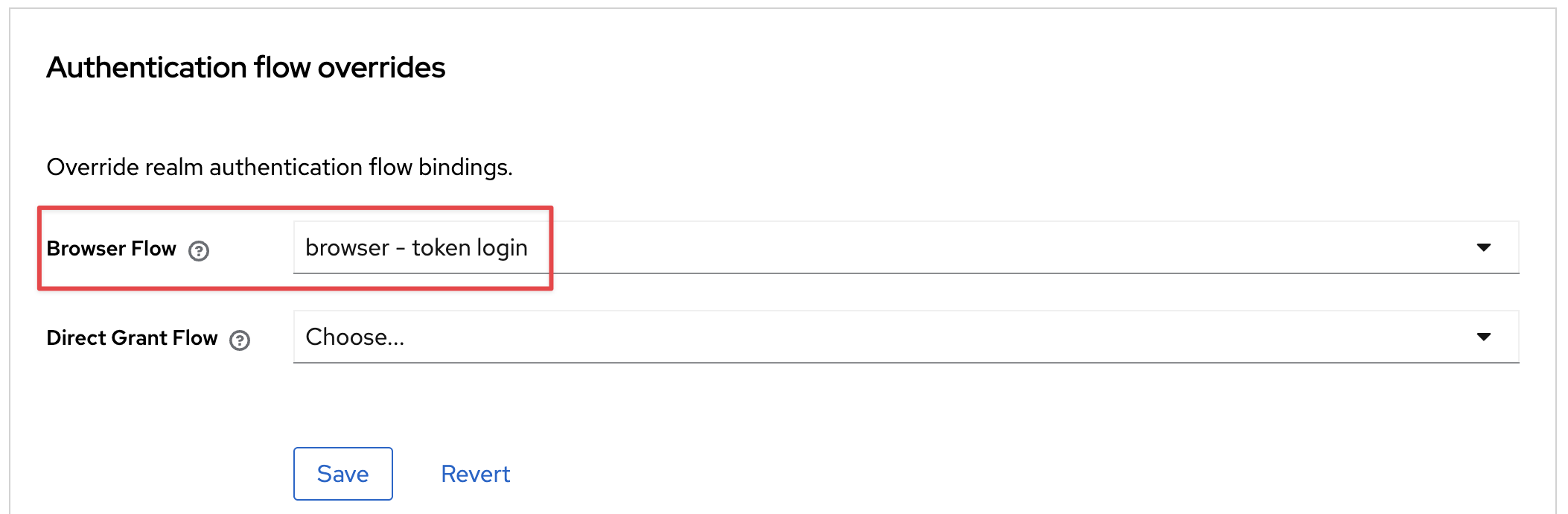

Finally, we need to map our customer browser flow to the proxy client.

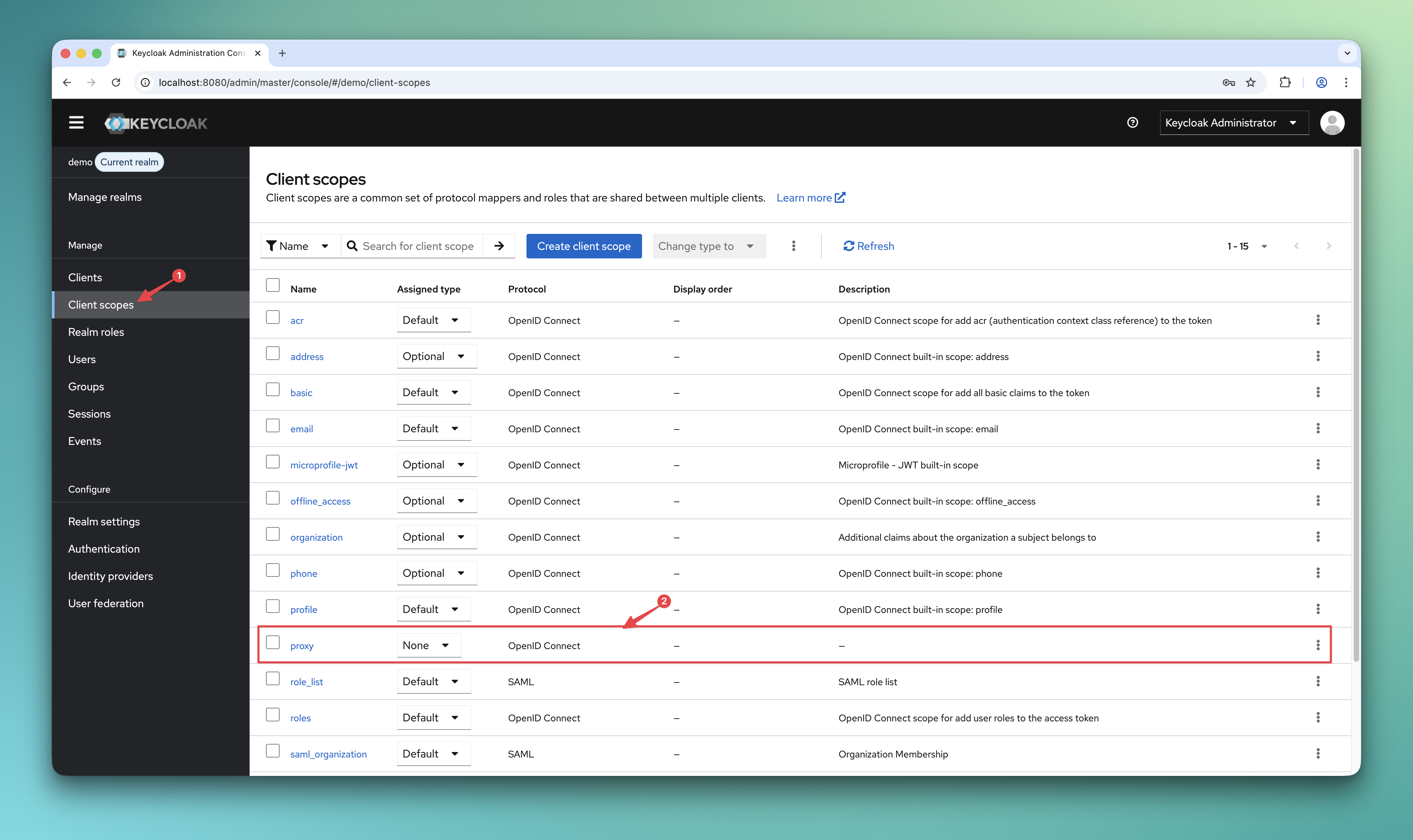

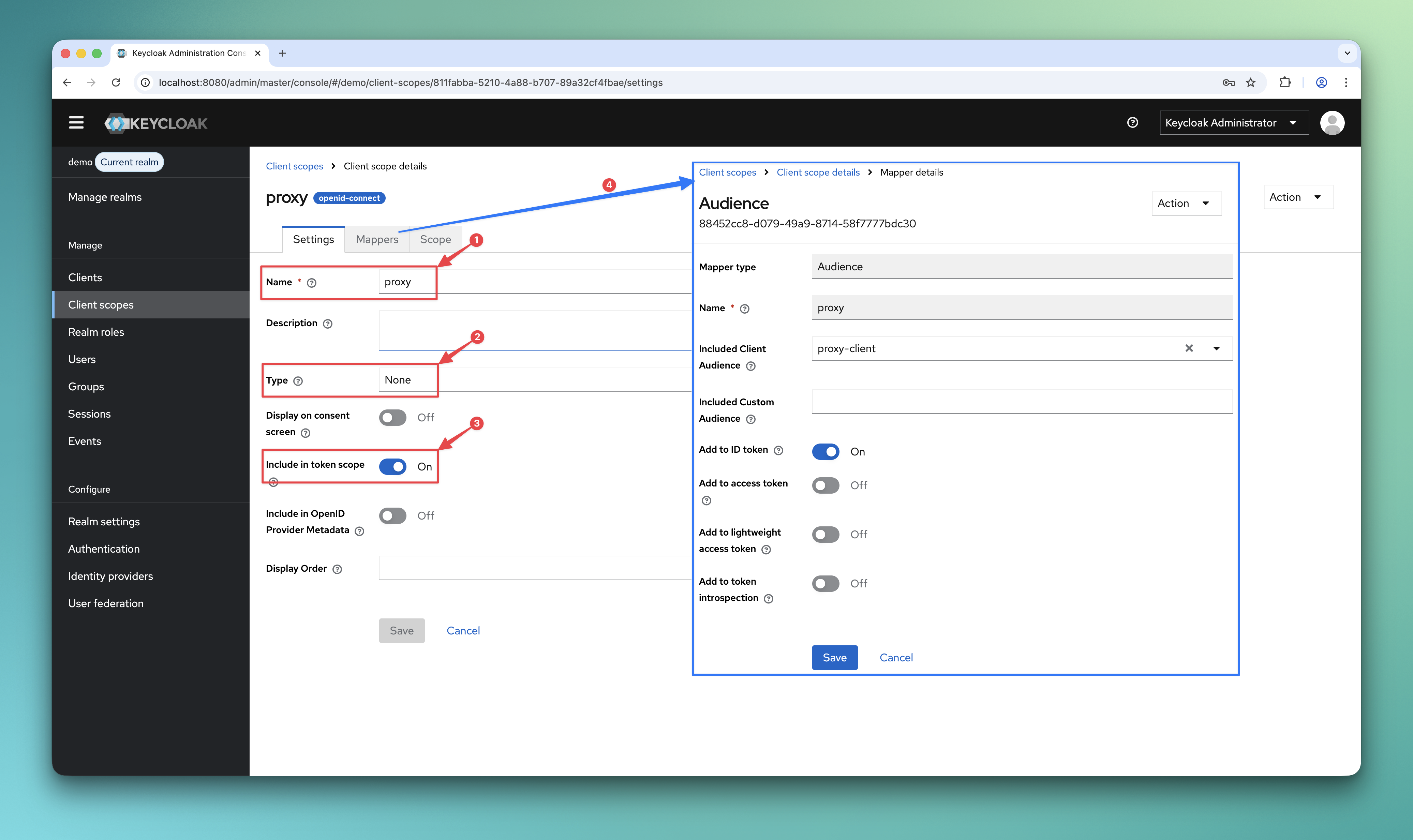

To ensure that the correct audience is set for the proxy client in the token, we create a dedicated client scope with name proxy for this use case.

Here is the detailed configuration

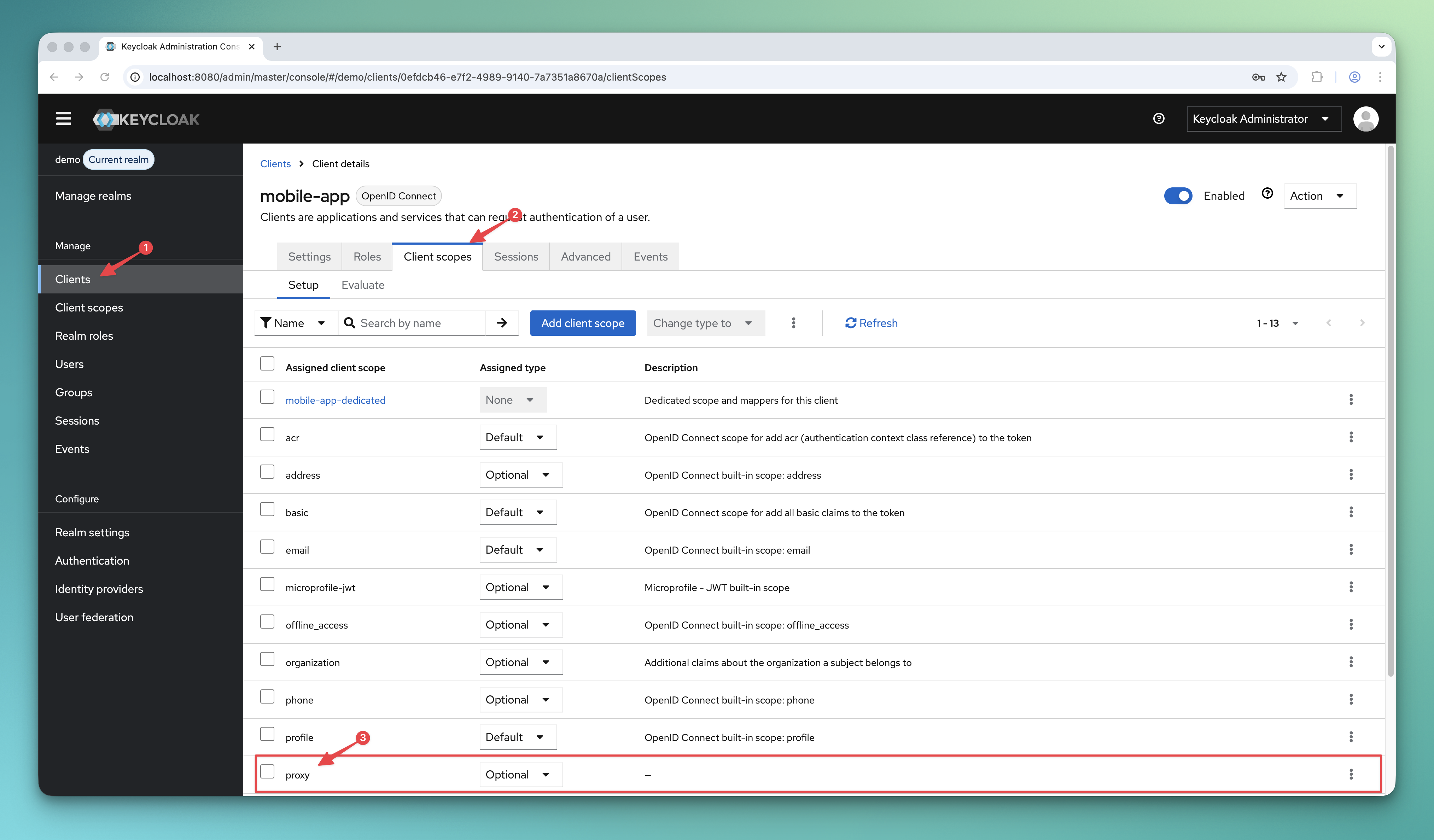

Once we have created the client scope proxy, it must be assigned to the source client. In our example, this is the client "mobile-app". Abhängig davon, we der Scope angefragt wird, kann dieser als "Optional" oder "Default" konfiguriert werden. In this configuration, the scope must always be requested by the client.

• The proxy-client
  • should always have PKCE enabled to prevent authorization code interception
  • must be a confidential client
  • be the only place to configure valid redirect URI's for target clients using ID Token login
  • has a dedicated custom browser flow with the securely configured Token Authenticator
• If possible, all checks in the authenticator should be activated to ensure maximum security
• Where possible, you should use the ID token rather than the access token, as the ID token is used for authentication
• PAR should be run from a backend (e.g. BFF)
